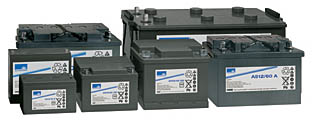

A500 Batteries
The universal series equally suitable for high
discharge UPS applications.
Superior cycling performance and parallel standby operation.
Case size is equivalent throughout the series for A200 replacement .
Type |
Type |
Nom, |
Nom. Cap: |
Discharge |
Max. load *) |
Max. current |
Weight |
Max. length |
Max. width in mm |
Max. height |
Connection |
| 795502 | A502 /10 S | 2 | 10.0 | 500 | 80 | 300 | 0.7 | 52.9 | 50.5 | 98.4 | Faston terminal 4,8 |
| 795302 | A504 /3.5 S | 4 | 3.5 | 175 | 60 | 300 | 0.5 | 90.5 | 34.5 | 64.4 | Faston terminal 4,8 |
| 795182 | A506 /1.2 S | 6 | 1.2 | 60 | 40 | 240 | 0.3 | 97.3 | 25.5 | 54.9 | Faston terminal 4.8 |
| 795312 | A506 /3.5 S | 6 | 3.5 | 175 | 60 | 300 | 0.7 | 134.5 | 34.8 | 64.4 | Faston terminal 4,8 |
|
795390 795391 |
A506 /4.2 K A506/4.2 S |
6 6 |
4.2 4.2 |
210 | 60 | 300 | 0.9 | 62.3 | 52.0 |
98.0 101.9 |
Silver Plate Rivet Faston terminal 4.8 |
| 785465 | A506 /6.5 S | 6 | 6.5 | 325 | 80 | 300 | 1.3 | 152.0 | 34.5 | 98.4 | Faston terminal 4,8 |
| 795523 | A506 /10 S | 6 | 10.0 | 500 | 80 | 300 | 2.1 | 152.0 | 50.5 | 98.4 | Faston terminal 4.8 |
| 795322 | A508 /3.5 S | 8 | 3.5 | 175 | 60 | 300 | 1.0 | 178.5 | 34.1 | 64.4 | Faston terminal 4,8 |
| 795185 | A512 /1.2 S | 12 | 1.2 | 60 | 40 | 240 | 0.7 | 97.5 | 49.5 | 54.9 | Faston terminal 4,8 |
| 795202 | A512 /2.0 S | 12 | 2.0 | 100 | 40 | 240 | 1.0 | 178.5 | 34.1 | 64.4 | Faston terminal 4.8 |
| 795315 | A512 /3.5 S | 12 | 3.5 | 175 | 60 | 300 | 1.5 | 134.0 | 66.8 | 64.4 | Faston terminal 4,8 |
| 795432 | A512 /6.5 S | 12 | 6.5 | 325 | 80 | 300 | 2.6 | 152.0 | 65.5 | 98.4 | Faston terminal 4.8 |
| 795436 | A512 /6.5 SR | 12 | 6.5 | 325 | 80 | 300 | 2.6 | 152.0 | 65.5 | 98.4 | Faston terminal 6,3 |
| 795525 | A 512 /10 S | 12 | 10.0 | 500 | 80 | 300 | 4.1 | 152.0 | 98.0 | 98.4 | Faston terminal 4.8 |
| 795530 | A 512 /10 SR | 12 | 10.0 | 500 | 80 | 300 | 4.1 | 152.0 | 98.0 | 98.4 | Faston terminal 6,3 |
| 795565 | A512 /16 G5 | 12 | 16.0 | 800 | 200 | 700 | 6.8 | 181.0 | 76.0 | 167.0 | Screw 5 |
| 795560 | A512 /16 SR | 12 | 16.0 | 800 | 100 | 300 | 6.7 | 181.0 | 76.0 | 156.4 | Faston terminal 6.3 |
| 895615 | A512 /25 G5 | 12 | 25.0 | 1250 | 200 | 800 | 9.6 | 176.0 | 167.0 | 126.0 | Screw 5 |
| 895625 | A512 /30 G6 | 12 | 30.0 | 1500 | 400 | 1500 | 11.7 | 197.0 | 132.0 | 184.0 | Screw 6 |
| 895632 | A512 /40 G6 | 12 | 40.0 | 2000 | 400 | 1500 | 14.8 | 210.0 | 175.0 | 175.0 | Screw 6 |
| 895630 | A512 /40 A | 12 | 40.0 | 2000 | 400 | 1500 | 14.8 | 210.0 | 175.0 | 175.0 | A DIN 72311 |
| 895660 | A512 /55 A | 12 | 55.0 | 2750 | 400 | 1500 | 19.0 | 261.0 | 135.0 | 230.0 | A DIN 72311 |
| 895664 | A512 /60 A | 12 | 60.0 | 3000 | 400 | 1500 | 21.8 | 306.0 | 175.0 | 190.0 | A DIN 72311 |
| 895668 | A512 /65 G6 | 12 | 65.0 | 3250 | 440 | 1500 | 25.0 | 381.0 | 175.0 | 190.0 | Screw 6 |
| 895666 | A512 /65 A | 12 | 65.0 | 3250 | 440 | 1500 | 25.0 | 381.0 | 175.0 | 190.0 | A DIN 72311 |
| 895722 | A512 /85 A | 12 | 85.0 | 4250 | 600 | 2600 | 33.0 | 330.0 | 171.0 | 235.0 | A DIN 72311 |
| 895750 | A512 /115 A | 12 | 115.0 | 5750 | 770 | 2600 | 40.3 | 284.0 | 267.0 | 230.0 | A DIN 72311 |
| 895900 | A512/200A | 12 | 200 | 10,000 | 770 | 2600 | 70 | 518 | 291 | 216 | A DIN 72311 |
*) Only with appropriate counter contacts. For installation, storage, transport or environmental regulations

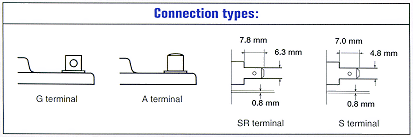

Pressure Terminals and Contacts
|
Permissable Pressure for A200 and A500 |
SR = Flat spade contact for 6.3mm Faston sockets |
Assembly Torque |
